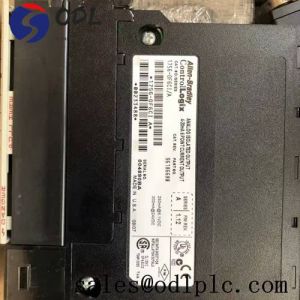

Current Loop Allen Bradley PLC Analog Output 1756-OF6CI Allen Bradley 6 Point Isolated Outputs

Product Overview:

The Allen Bradley 1756-OF6CI module is a universal isolated analog current/voltage output module of the ControlLogix a series. Its range is 0 to 20 milliamps, with low signal and user counts of 0 milliamps and -32768 counts, and high signal and user counters of 21.074 milliamps and 32767 counts. The current consumption of this module at 5.1V is 250mA, ranging from 0 to 550 ohms, terminated on OUT and RTN, 551 to 1000 ohms, terminated on OUT and ALT. At 24V, its current consumption is 225 milliamps, used for terminating 0 to 550 ohms on OUT and RTN, and 300 milliamps, used for terminating 551 to 1000 ohms on OUT and ALT.

Technical Specifications

Manufacturer:Rockwell Automation
Brand:Allen-Bradley
Part Number/Catalog No.:1756-OF6CI
Series:ControlLogix
Module Type:Isoloated Analog Output Module with current loop
Outputs:6-Point Isolated
Backplane Current (5Volts):250 milliamps
Backplane Current (24 Volts):300 milliamps
Power Dissipation (Max) :4.9 Watts at 60 Celsius
Removable Terminal Blocks:1756-TBNH, 1756-TBSH
Removeable Terminal Block(s):1756-TBNH, 1756-TBSH
Isolation Voltage:50 Volts Continuous
