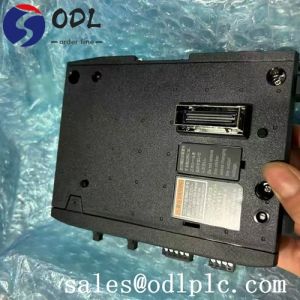

High Intensity Keyence Parts LED Illumination Controller CA-DC21E KEYENCE

Product Overview

Boost machine-vision brightness and cut inspection times with the CA-DC21E, KEYENCE’s next-generation high-intensity LED illumination controller. This factory-original unit delivers up to 4× the light output of conventional controllers while maintaining ultra-stable, flicker-free operation for high-speed cameras.

Quick Specs

Part Number: CA-DC21E (100 % genuine KEYENCE)
Type: 2-channel, constant-current PWM controller
Max. Output per Channel: 50 W (24 V, 2.1 A)
LED Drive Mode: Strobe or continuous
Intensity Control: 0–255 steps via front dial, RS-232C, or Ethernet
Strobe Width: 10 µs – 999 ms
Trigger Response: < 1 µs jitter
Input Trigger: 5–24 V NPN/PNP, photocoupler isolated
Interface: RS-232C, LAN (TCP/IP), and parallel I/O
Power Supply: 24 VDC ±10 %, 4 A max.
Mounting: 35 mm DIN-rail or direct panel
Dimensions: 100 × 45 × 120 mm (W × H × D)
Operating Temp.: 0 … 50 °C
Certifications: CE, UL, RoHS

• Key Benefits

• Ultra-bright strobe – freeze fast-moving parts at 10 µs pulses
• Flicker-free continuous mode for uniform line-scan lighting
• LAN & RS-232C allow remote calibration and data logging
• Over-temperature & short-circuit protection extend LED life
• DIN-rail snap-on installs in seconds, no extra brackets


• Packing & Delivery:


• 1)100% brand New and Original Factory Seal!

• 2)Warranty: 1 year

• 3)Package: Original packing with cartons.

• 4)Delivery time: Shipped in 3-7 days after payment

• 5) All the goods will be tested before shipment.
